Blockの作成に使用可能なアイコン

目次

ダッシュボードアイコンの利用

WordPress 管理画面に既に含まれているDashiconsセットの任意のアイコンを使用できます。以下の中から好きなアイコンを探しましょう。

block.jsonへ設定

dashicons-admin-media の場合。

{
	"$schema": "https://schemas.wp.org/trunk/block.json",
	"apiVersion": 2,
	"name": "block",
	"version": "0.1.0",
	"title": "ブロック",
	"category": "widgets",
	"icon": "dashicons-admin-media",
...略

メタデータで設定して、その情報を registerBlockType で設定する。

/**
 * Registers a new block provided a unique name and an object defining its behavior.
 *
 * @see https://developer.wordpress.org/block-editor/reference-guides/block-api/block-registration/
 */
import { registerBlockType } from '@wordpress/blocks';

/**
 * Lets webpack process CSS, SASS or SCSS files referenced in JavaScript files.
 * All files containing `style` keyword are bundled together. The code used
 * gets applied both to the front of your site and to the editor.
 *
 * @see https://www.npmjs.com/package/@wordpress/scripts#using-css
 */
import './style.scss';

/**
 * Internal dependencies
 */
import Edit from './edit';
import Save from './save';
import metadata from './block.json';

/**
 * Every block starts by registering a new block type definition.
 *
 * @see https://developer.wordpress.org/block-editor/reference-guides/block-api/block-registration/
 */
registerBlockType( metadata.name, {
  title:    metadata.title,
  icon:     metadata.icon,
  category: metadata.category,

	/**
	 * @see ./edit.js
	 */
	edit: Edit,
	/**
	 * @see ./save.js
	 */
	save: Save,
} );

SVGをアイコンとして使いたい場合

block.jsonで、iconの設定をおこなわない。

{
	"$schema": "https://schemas.wp.org/trunk/block.json",
	"apiVersion": 2,
	"name": "block",
	"version": "0.1.0",
	"title": "ブロック",
	"category": "widgets",
	"icon": "",
...略

registerBlockType で SVGを設定する

/**
 * Registers a new block provided a unique name and an object defining its behavior.
 *
 * @see https://developer.wordpress.org/block-editor/reference-guides/block-api/block-registration/
 */
import { registerBlockType } from '@wordpress/blocks';

/**
 * Lets webpack process CSS, SASS or SCSS files referenced in JavaScript files.
 * All files containing `style` keyword are bundled together. The code used
 * gets applied both to the front of your site and to the editor.
 *
 * @see https://www.npmjs.com/package/@wordpress/scripts#using-css
 */
import './style.scss';

/**
 * Internal dependencies
 */
import Edit from './edit';
import Save from './save';
import metadata from './block.json';

/**
 * Every block starts by registering a new block type definition.
 *
 * @see https://developer.wordpress.org/block-editor/reference-guides/block-api/block-registration/
 */
registerBlockType( metadata.name, {
  title:    metadata.title,
  icon:{src:<svg version="1.1" xmlns="http://www.w3.org/2000/svg" viewBox="0 0 512 512"><g><path d="M378.409,0H208.294h-13.176l-9.314,9.315L57.017,138.101l-9.314,9.315v13.176v265.513c0,47.36,38.528,85.896,85.895,85.896h244.811c47.361,0,85.888-38.535,85.888-85.896V85.896C464.297,38.528,425.77,0,378.409,0zM432.493,426.104c0,29.877-24.214,54.091-54.084,54.091H133.598c-29.877,0-54.091-24.214-54.091-54.091V160.592h83.717c24.884,0,45.07-20.179,45.07-45.071V31.804h170.114c29.87,0,54.084,24.214,54.084,54.091V426.104z"/><path d="M180.296,296.668l-4.846-0.67c-10.63-1.487-14.265-4.978-14.265-10.104c0-5.78,4.309-9.817,12.383-9.817c5.653,0,11.305,1.62,15.745,3.764c1.886,0.942,3.903,1.487,5.789,1.487c4.845,0,8.612-3.63,8.612-8.616c0-3.226-1.481-5.921-4.71-7.939c-5.384-3.372-15.476-6.06-25.572-6.06c-19.781,0-32.436,11.171-32.436,27.998c0,16.15,10.232,24.898,28.938,27.454l4.846,0.67c10.903,1.48,14.129,4.846,14.129,10.229c0,6.326-5.247,10.766-14.939,10.766c-6.727,0-12.111-1.745-19.645-5.921c-1.616-0.942-3.634-1.62-5.788-1.62c-5.115,0-8.885,3.91-8.885,8.756c0,3.226,1.616,6.326,4.713,8.344c6.054,3.764,15.878,7.8,28.798,7.8c23.823,0,35.934-12.24,35.934-28.795C209.097,307.84,199.273,299.356,180.296,296.668z"/><path d="M281.108,259.382c-4.577,0-7.939,2.43-9.556,7.674l-16.69,54.51h-0.402l-17.634-54.51c-1.745-5.244-4.978-7.674-9.551-7.674c-5.653,0-9.692,4.176-9.692,9.287c0,1.347,0.269,2.834,0.67,4.175l23.286,68.104c2.96,8.477,6.727,11.57,12.652,11.57c5.785,0,9.555-3.093,12.516-11.57l23.282-68.104c0.406-1.341,0.674-2.828,0.674-4.175C290.664,263.558,286.76,259.382,281.108,259.382z"/><path d="M364.556,300.836h-18.841c-5.114,0-8.344,3.1-8.344,7.806c0,4.713,3.23,7.814,8.344,7.814h6.193c0.538,0,0.803,0.258,0.803,0.803c0,3.505-0.265,6.598-1.075,9.014c-1.882,5.796-7.67,9.426-14.669,9.426c-7.943,0-12.921-3.903-14.939-10.096c-1.075-3.365-1.48-7.8-1.48-19.648c0-11.842,0.405-16.15,1.48-19.516c2.018-6.325,6.867-10.228,14.67-10.228c5.924,0,10.362,1.885,13.859,6.724c2.695,3.777,5.387,4.852,8.749,4.852c4.981,0,9.021-3.638,9.021-8.888c0-2.151-0.674-4.035-1.752-5.921c-4.842-8.204-15.071-14.264-29.877-14.264c-16.287,0-28.935,7.408-33.644,22.204c-2.022,6.466-2.559,11.576-2.559,25.038c0,13.454,0.538,18.573,2.559,25.031c4.709,14.802,17.357,22.204,33.644,22.204c16.286,0,28.668-8.204,33.374-22.881c1.617-5.111,2.29-12.645,2.29-20.716v-0.95C372.362,303.664,369.538,300.836,364.556,300.836z"/></g></svg>},
  category: metadata.category,

	/**
	 * @see ./edit.js
	 */
	edit: Edit,
	/**
	 * @see ./save.js
	 */
	save: Save,
} );

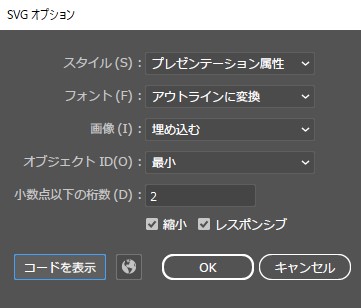

SVGの場合、余計な情報が入っているとビルドできなかったり、エディタでエラーとなります。色々と試してみてくださいね。
